When you are doing client-side development you are doing many repetitive tasks such as minifying scripts or stylesheet files, combining them and similar. You can use tools such as Grunt, or Gulp to automate them. What's best is they are fully supported in Visual Studio.

You can download a sample project from Github.

Preparing the project

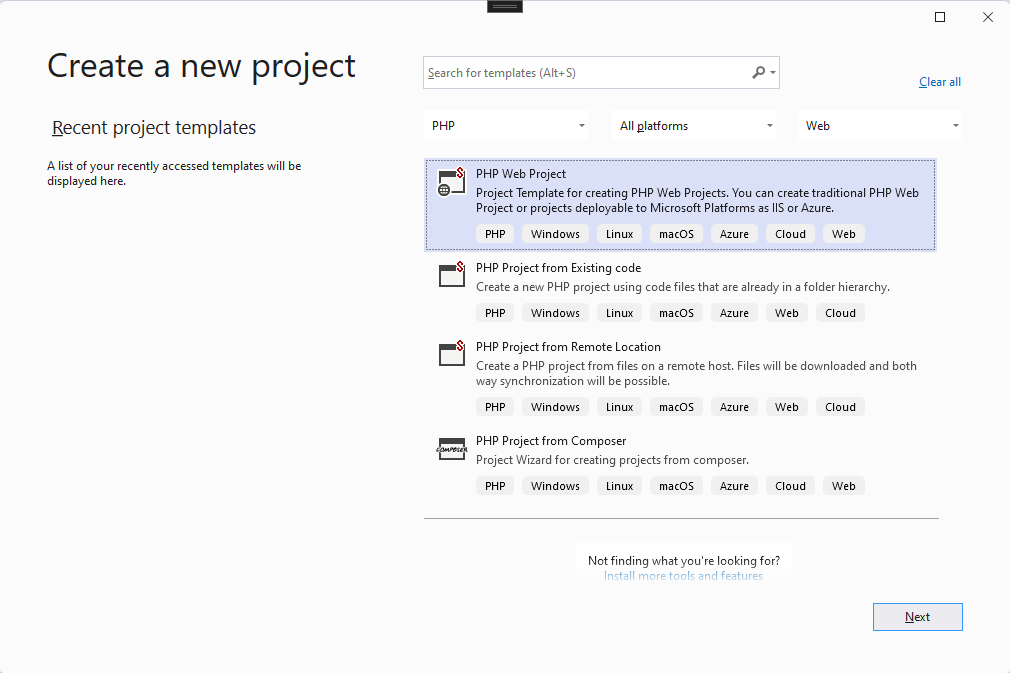

To demonstrate you are going to create a new PHP project. Let's call it GruntSample.

Create a new PHP Project

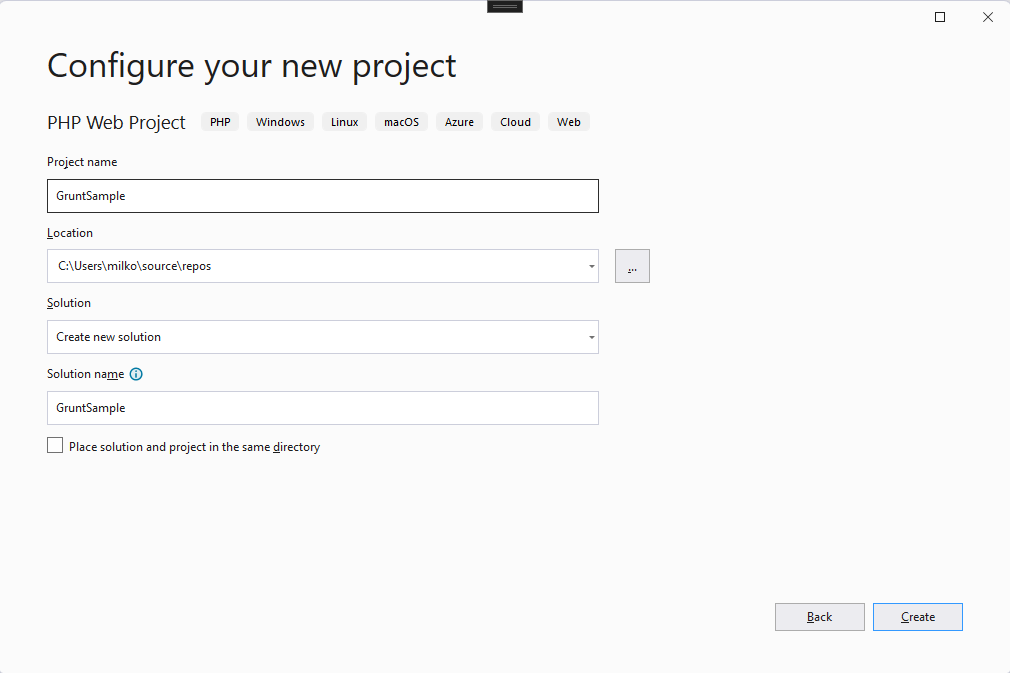

Configure PHP project

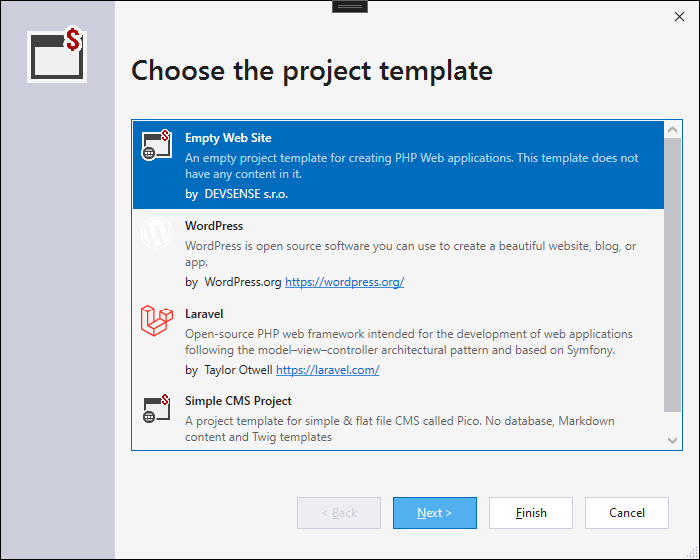

Choose a PHP Project Template

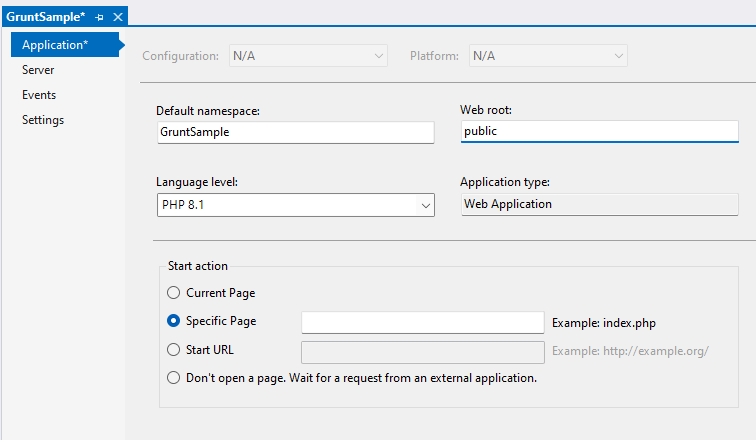

When the project is created, create a new folder called public and set it as web root. Right click on project node in the Solution Explorer and select Properties. In the Application tab, fill web root property to public. This will be the folder which will be served by the server as a root of this web application.

Choose a PHP Project Template

Hit Ctrl+S to save the project file and you should see the changed icon of the public folder - indicating the folder is a web root.

Web root icon in the Solution Explorer

Move index.php to the web root, so the server has a default document it can serve. You can just drag and drop it in the Solution Explorer.

Then you are going to create a directory structure of the project. Create a folder assets and subdirectories css and js. They will contain unprocessed script and stylesheet files. The current directory structure should look like this.

GruntSample
├───assets
│   ├───css
│   └───js
└───public

To js folder, add the following javascript file site.js:

document.addEventListener("DOMContentLoaded", function () {
    document.getElementById("demo").innerHTML = "... and from JS."
});

To css folder, add this file stylesheet.css:

body {
    margin: 25px;
    background-color: #ededed;
    font-family: arial, sans-serif;
    font-size: large;
}

Then update index.php in public folder, so it contains the following:

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
    <title></title>
    <script src="js/site.min.js"></script>
    <link href="css/styles.min.css" rel="stylesheet" />
</head>
<body>
    <?php

    echo 'Hello World from PHP!';

    ?>

    <div id="demo"></div>

</body>
</html>

You've likely noticed js/site.min.js and css/styles.min.css don't exist, but Grunt is going to create them for us later.

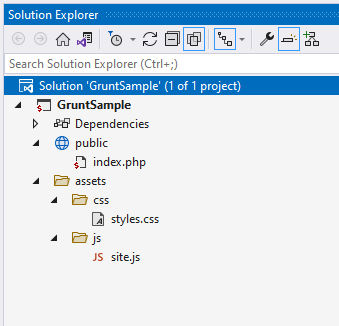

Once you are done, your Solution Explorer should look like this:

Solution Explorer

Configuring npm

Before you are going to use Grunt, you will need to install it. For this you will need node.js and npm - it's package management tool. Make sure it's installed.

Then add package.json file to the project. Right click on the project node and select Add new item. Then select npm Configuration File.

Add new npm configuration file

Then copy the following content:

{
  "version": "1.0.0",
  "name": "php",
  "private": true,
  "devDependencies": {
    "grunt": "^1.4.1",
    "grunt-contrib-cssmin": "^4.0.0",
    "grunt-contrib-uglify": "^5.0.1",
    "grunt-contrib-watch": "^1.1.0"
  }
}

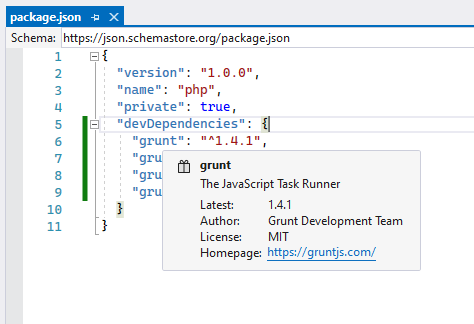

Btw. when you hover over the dependency nodes you will get a description about what id does.

Package.json tooltips

To save you from hovering, these dependencies are:

  • grunt: The Grunt task runner package.
  • grunt-contrib-cssmin: A plugin that minifies stylesheet to reduce size.
  • grunt-contrib-uglify: A plugin that minifies JavaScript to reduce size.
  • grunt-contrib-watch: A plugin that watches file activity.

Open the Terminal (Ctrl+`).

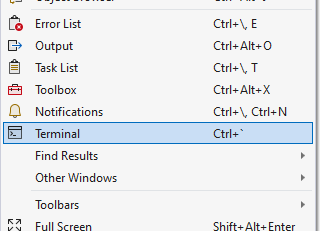

Terminal Command

And run npm install, which will install all the dependencies we've defined in the package.json. Btw. you can run npm install for each of these packages separetly, but there's no need now, when we know what we want in advance.

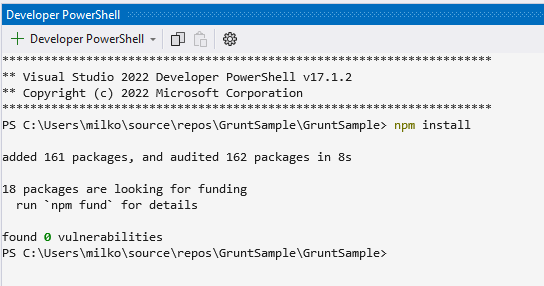

Running npm install

Running npm install each time project loads

Since you might want to share this project with other team members, or you would like to open in on other machine. It's useful to make sure all these packages get installed when the project opens. You can use Events for that.

Go to the project properties. Right click on project node in the Solution Explorer and select Properties. Choose Events tab. Click Add action.. next to the Project Opened event and fill the command.

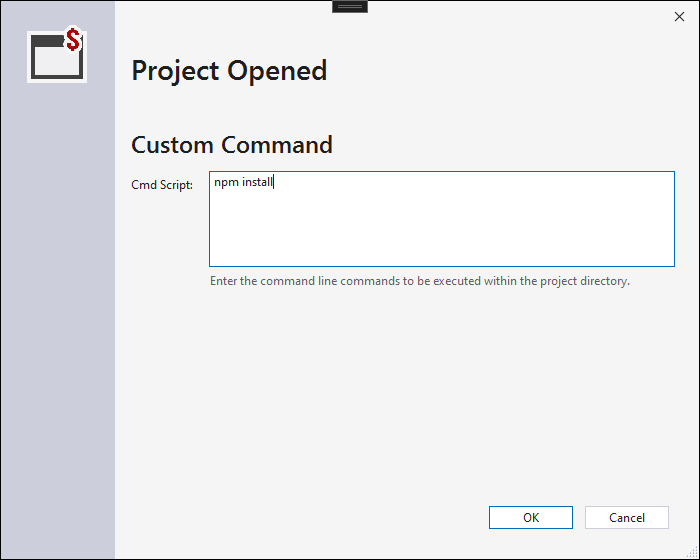

Project Opened event

Click Ok. The event is set.

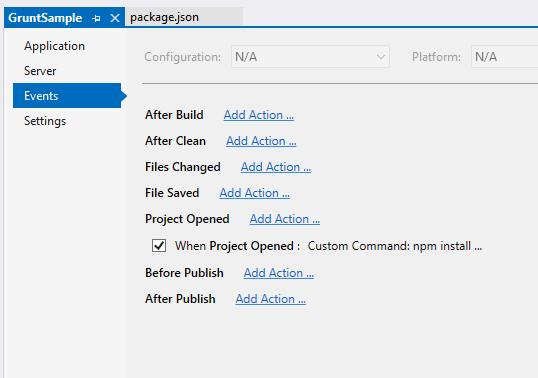

PHP Project Events

Now, when somebody opens this project npm install will be called - making sure all the grunt packages are installed.

Configuring Grunt

Now, when you have Grunt installed we'll have to configure it, so it does something useful.

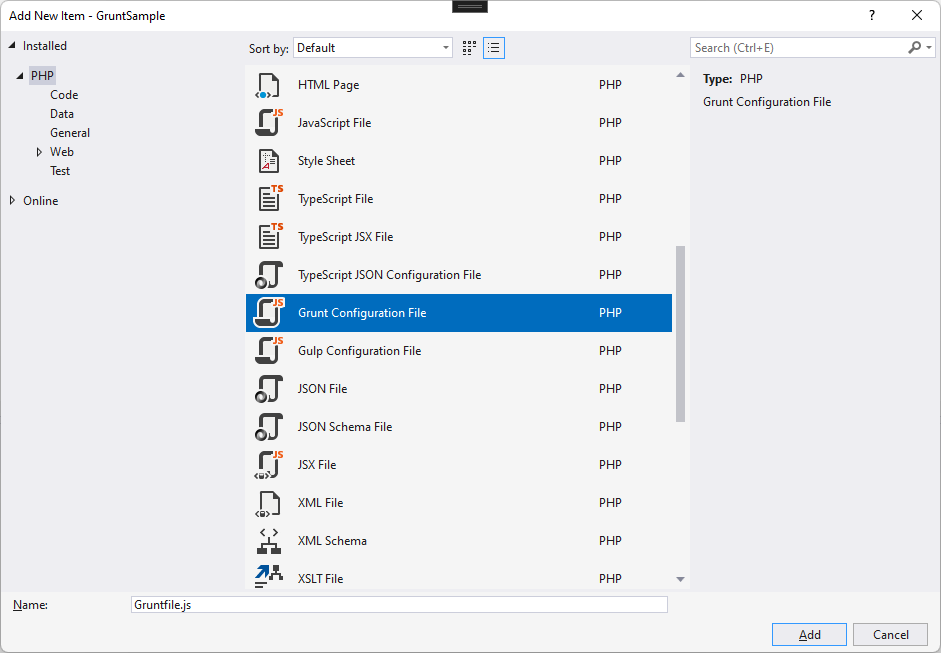

First, create a Grunt Configuration File.

Add new Grunt configuration file

The file looks like this.

/*
This file in the main entry point for defining grunt tasks and using grunt plugins.
Click here to learn more. http://go.microsoft.com/fwlink/?LinkID=513275&clcid=0x409
*/
module.exports = function (grunt) {
    grunt.initConfig({
    });
};

Minifying JavaScript

Now, we would like to minify the assets/js/site.js file and copy it to the public/js folder. Update the Gruntfile.js.

module.exports = function (grunt) {
    grunt.initConfig({

        uglify: {
            options: {
                mangle: true, //Shorten variable names, where possible
                compress: true, //Remove Unnecessary whitespaces
                banner: "/*Minified version of site.js*/\n" //Banner Property at the top of minified version
            },
            target: {
                src: "assets/js/site.js",
                dest: "public/js/site.min.js",
            }
        }
    });

    grunt.loadNpmTasks("grunt-contrib-uglify");
};

grunt.loadNpmTasks loads grunt-contrib-uglify task, which we've configured in the grunt.initConfig method. target defines what files are going to be minified and where the result should be placed.

Minifying CSS

In the similar way, you will add minification of css files.

module.exports = function (grunt) {
    grunt.initConfig({

        uglify: {
            options: {
                mangle: true, //Shorten variable names, where possible
                compress: true, //Remove Unnecessary whitespaces
                banner: "/*Minified version of site.js*/\n" //Banner Property at the top of minified version
            },
            target: {
                src: "assets/js/site.js",
                dest: "public/js/site.min.js",
            }
        },

        cssmin: {
            target: {
                src: ["assets/css/styles.css"],
                dest: "public/css/styles.min.css"
            }
        },

    });

    grunt.loadNpmTasks("grunt-contrib-cssmin");
    grunt.loadNpmTasks("grunt-contrib-uglify");

};

cssmin section defines what to minify and where to place the result and loadNpmTasks loads the task.

Combining it

Now we have two tasks defined, we can create one task which will call them both. Let's just call it build. After the loadNpmTasks method calls add the following line.

    grunt.registerTask('build', ['uglify', 'cssmin'])

This is also called Alias task and when you call it, it will invoke both uglify and cssmin.

Task Runner Explorer

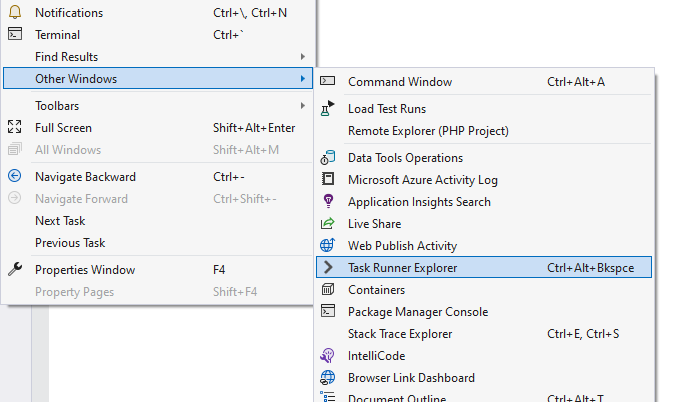

Let's try if it works. Open the Task Runner Explorer. You can find it at View | Other Windows | Task Runner Explorer or hit Ctrl+Al+Bkspce.

Task Runner Explorer Command

You should see two tasks we've previously defined and one alias task.

Task Runner Explorer

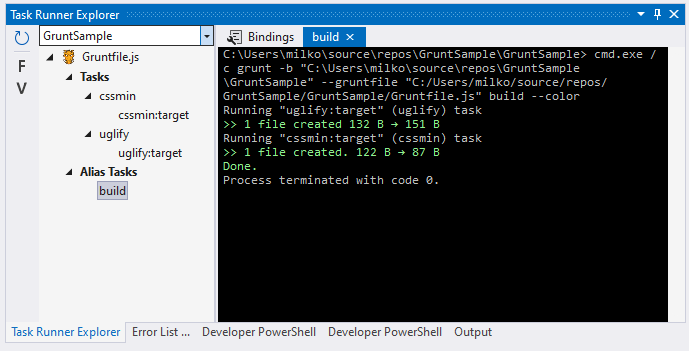

Right click on build task and click Run.

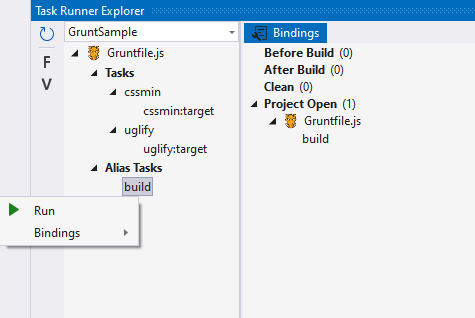

Task Runner Explorer

Congrats, both javascript and stylesheet files have been minified and copied to the public folder. You project in the Solution Explorer should look like this.

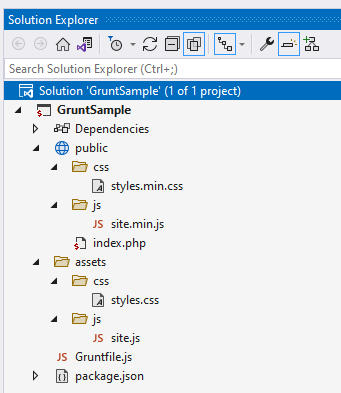

Solution Explorer

You can go ahead and run it F5.

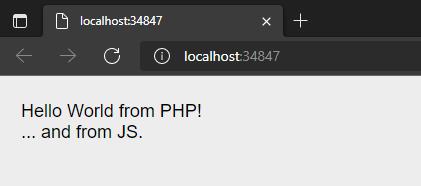

Project output in the browser

Watching for changes

One way how we could improve the project is to use watch task, which will monitor assets folder and run the build task when files change. This way you will not have to call build each time you make a change.

This would be a resulting gruntfile.js.

module.exports = function (grunt) {
    grunt.initConfig({

        uglify: {
            options: {
                mangle: true, //Shorten variable names, where possible
                compress: true, //Remove Unnecessary whitespaces
                banner: "/*Minified version of site.js*/\n" //Banner Property at the top of minified version
            },
            target: {
                src: "assets/js/site.js",
                dest: "public/js/site.min.js",
            }
        },

        cssmin: {
            target: {
                src: ["assets/css/styles.css"],
                dest: "public/css/styles.min.css"
            }
        },

        watch: {
            files: ["assets/**/*.*"],
            tasks: ["build"]
        }

    });

    grunt.loadNpmTasks("grunt-contrib-cssmin");
    grunt.loadNpmTasks("grunt-contrib-uglify");
    grunt.loadNpmTasks('grunt-contrib-watch');

    grunt.registerTask("default", ["watch"]);
    grunt.registerTask('build', ['uglify','cssmin'])
};

Other than adding watch task, we've also defined default task, which will be called when you'd be running grunt from command line and you wouldn't supply any other arguments.

If you run the default task from the Task Runner Explorer you will see that watch task is running and waiting for a change in asset folder.

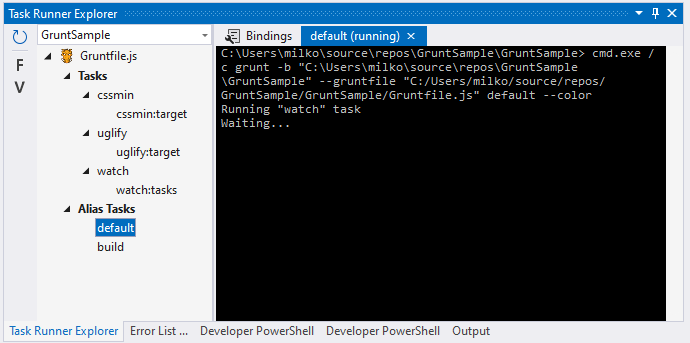

Watch task is running

Binding to Visual Studio events

Unless you want to run the default task each time you load this project, it would be useful to configure it so it starts automatically after the project load. You can either use Events as we did with npm install or you can set it up directly in the Task Runner Explorer.

Right click on default task, select Bindings and choose Project Opened.

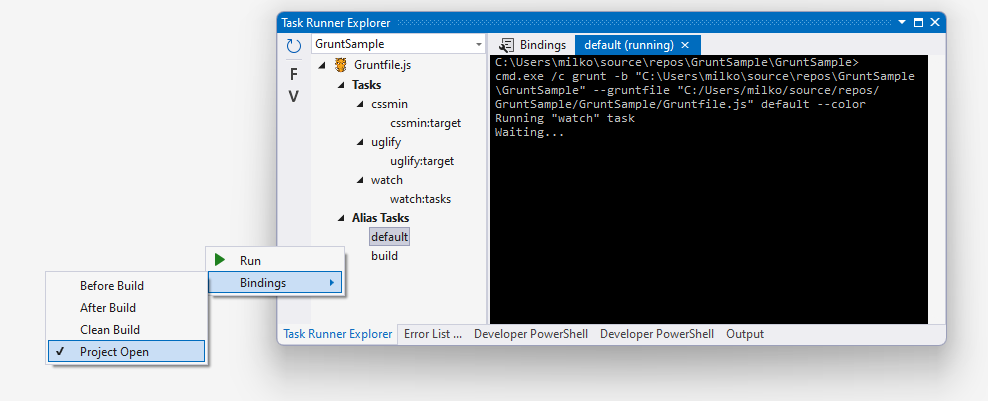

Task Runner Explorer - Bindings

I would also recommend to set up build after the project opened, so when you open the project on a new machine you would still have everything ready to go.

Summary

Client-side development requires many different tasks called again and again. Grunt is a powerful tool which allows you to automate them and Visual Studio offers convenient way how to manage, run and bind them to common Visual Studio events.
