Installing and configuring XAMPP for PHP development

Author by Miloslav Beno
15 minutes
Installing and configuring XAMPP for PHP development

XAMPP is a cross-platform Apache HTTP server distribution containing MariaDB (fork of MySQL) database, PHP, and Perl. The word "XAMPP" is an acronym and it seems there is no official explaning of if, but we can safely assume that "X" stands for "cross", meaning "cross-platform", A would be Apache, M is MariaDB. While first P would be short for PHP and second P for Pearl or reversed?

Getting the XAMPP installer

From the Apache friends website, download the package that matches your platform. For this tutorial we are going to use Windows and PHP 8.0. https://www.apachefriends.org/download.html

Apache friends website

Installing the XAMPP

Once you've download the installar, run it. If you have UAC enabled enabled XAMPP installer will recommend you not to install it into the Program Files folder. Acknowledge by clicking OK

UAC warning

Select the components in which you are insterested in. Usually it's sufficient to install only Apache, MySQL and PHP. But feel free to install whatever you are planning to use.

XAMPP Installation Wizard

Choose the directory where the XAMPP will install. For the rest of the tutorial I'm going to assume you've chosen the default c:\xampp.

Installation Directory

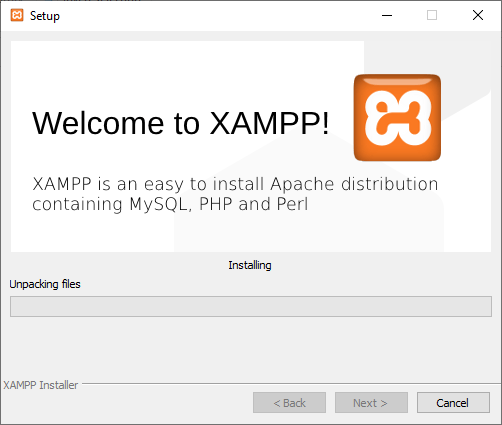

XAMPP Installation

After the installer did the job, click Finish to launch XAMPP control panel.

XAMPP Installation done

Running the servers

While in XAMPP control panel, you can perform several tasks such as running or stopping the services as Apache, MySQL, etc. By default Apache should start immediately, but in my case it didn't, because my port 80 was blocked.

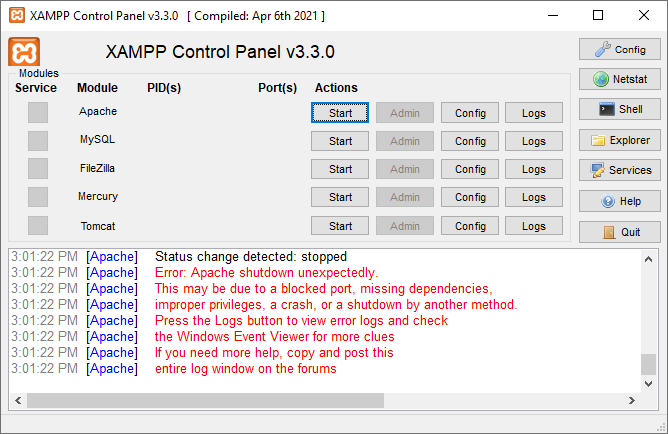

Apache didn't start - port 80 was occpued

I knew I had IIS running, so I stopped it. Then I returned to XAMPP Control panel and clicked Start. This time I was prompted by firewall to allow Apache. Click Allow access

Firewall prompt

The Apache is now running.

Apache is running

Running the servers as Windows Service

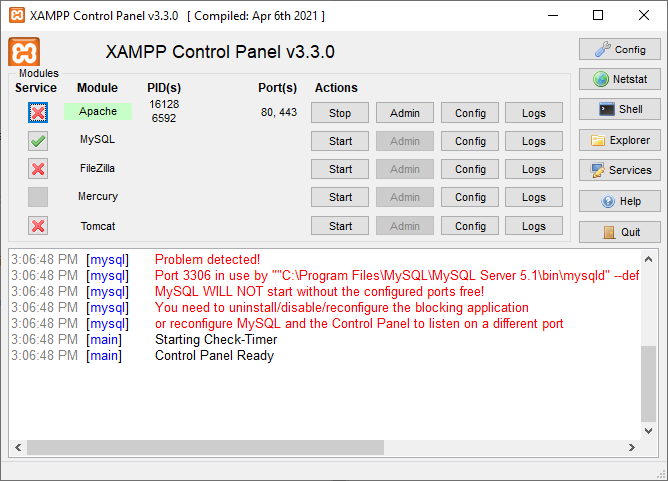

By default none of these servers are running as Windows Service. If you'd wish them to run as service (e.g. because you want them to start immediately when Windows will start). Open XAMPP Control panel as administrator, click on Stop to stop the service and click on X next to the service name.

XAMPP running under admin

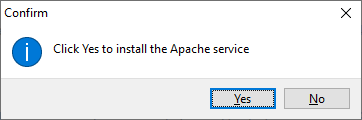

Are you sure? Click Yes

Are you sure

Now, the server is installed as Windows Service. But you can always start/stop it from XAMPP Control Panel, or uninstall it as Windows Service by clicking on green check box next to the server.

Apache is running as Windows Service

Install Xdebug

You are almost ready now, but to be able to debug your PHP code you will need Xdebug. By default XAMPP doesn't provide PHP with Xdebug extension, so you will need to download it yourself. To find out which version you need, go to the XAMPP Control Panel and click on Shell button.

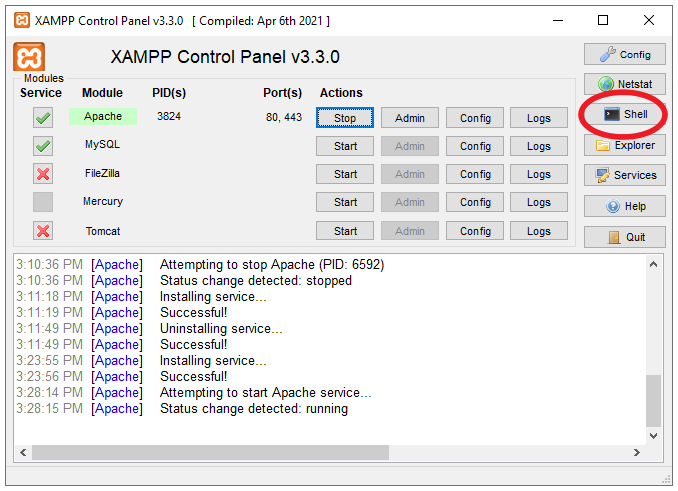

Shell button

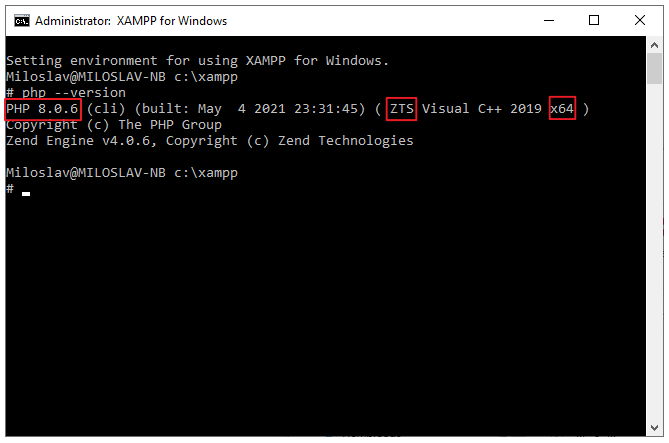

Type php --version:

Image description

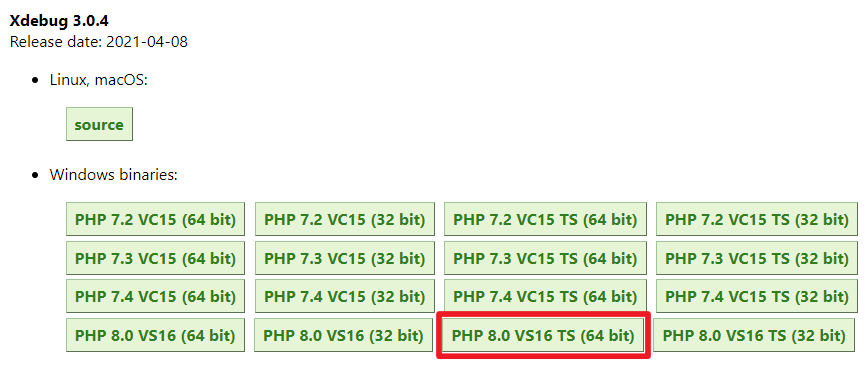

I highlighted PHP version, Architecture(32 bit or 64 bit) and Thread safety (TS). You will use these three variables to get the correct version of Xdebug. Navigate to https://xdebug.org/download and download the correct version. In my case it's PHP 8.0 VS16 TS (64 bit)

Xdebug 8.0 64bit TS

Download the extension, copy it to c:\xampp\php\ext\ and rename it to php_xdebug.dll. Then open PHP Configuration file at c:\xampp\php\php.ini, scroll all the way down and copy the following snippet and save the file.

[XDebug]
zend_extension = "c:\xampp\php\ext\php_xdebug.dll"
xdebug.mode=debug
xdebug.client_host = 127.0.0.1
xdebug.client_port = 9003
xdebug.start_with_request=trigger

Note This snippet is for Xdebug 3.0 and higher; If you need Xdebug 2.0 it would be different.

In the XAMPP Control Panel, restart the Apache by clicking Stop and Start.

You can verify that Xdebug is properly installed by running php --version again. You should see the similar output:

XAMPP with Xdebug

Integrating XAMPP with IDE

You're almost all set to start developing PHP projects on XAMPP, but to be able to do it efficiently you will need some sort of IDE. In the following paragraphs I will present how to start using XAMPP with both Visual Studio and Visual Studio Code. So please feel free to skip directly to the IDE you are intestered in.

Visual Studio

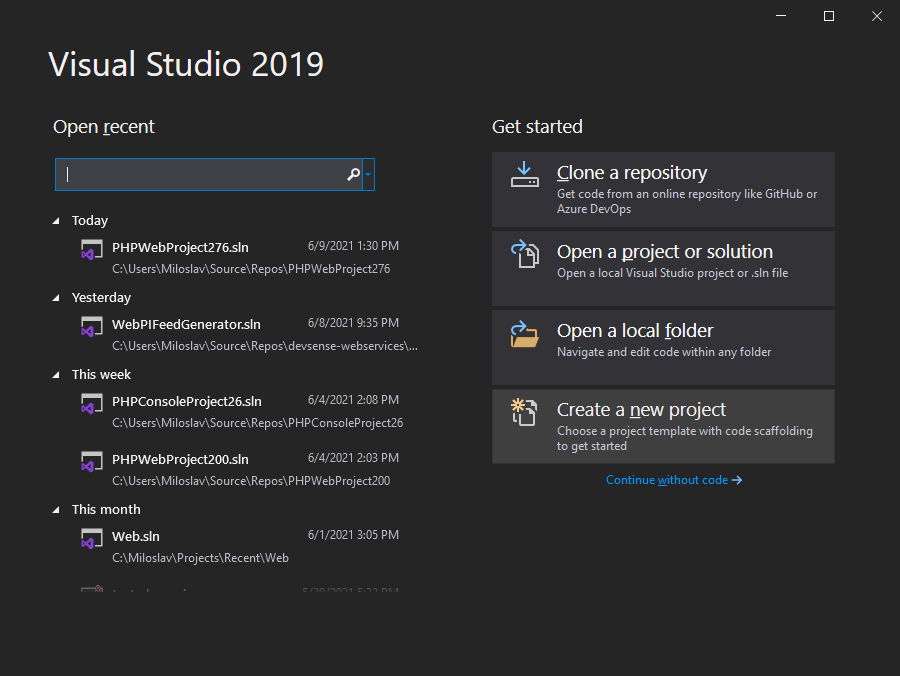

I'm going to assume you have Visual Studio and PHP Tools for Visual Studio both installed. The following text shows the screenshots from Visual Studio 2019, but it shouldn't matter, PHP Tools are available since Visual Studio 2010. You can start the instance of VS and select Create a new project.

Visual Studio 2019 Initial Dialog

Select PHP in the language filter and click on PHP Web Project, hit Next:

Visual Studio 2019 Create New Project

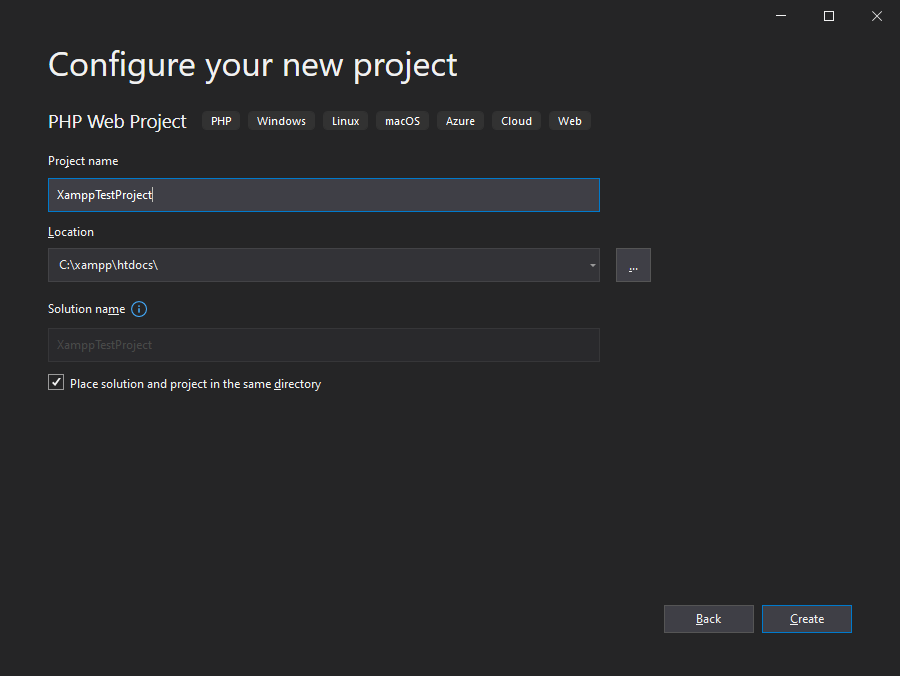

Name the project, as a location fill c:\xampp\htdocs and hit Create

Visual Studio 2019 Configure New Project

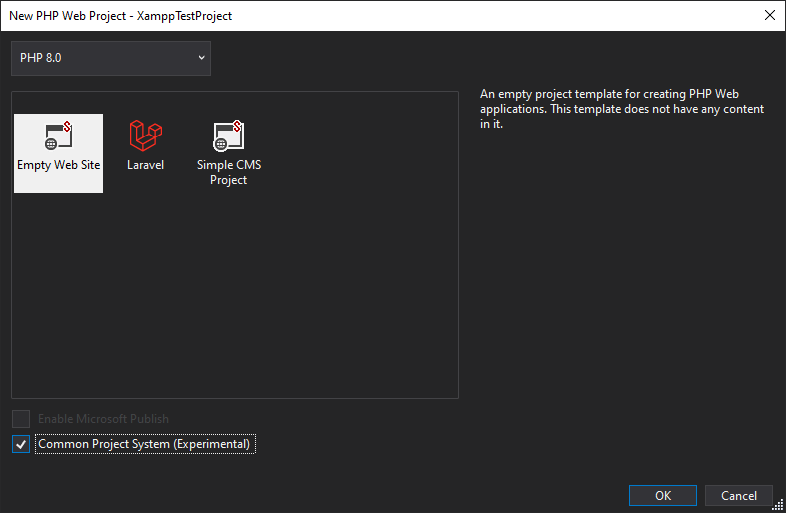

Select the template, e.g. Empty Web Site and enable Common Project System. It's a new type of project system PHP Tools provide since Visual Studio 2019, it's lacking few features, but still it's much better than the old one. Hit OK.

Visual Studio 2019 New PHP Web Project

Once your new PHP project is created, go to the project properties. Right click on project node in the Solution Explorer and select Project Properties (or select the project node in the Solution Explorer and press Shift+F4). In the Project Properties, choose Server tab.

Change the Server to Custom and fill in server URL. In our case it's going to be http://localhost/XampTestProject . Xdebug port should be 9003 which is the default since Xdebug 3. Close the Project Properties tab and save the project.

Project Properties Server tab

Now back in the project, press F10, the debug session should start and the debugger break on the first statement of the script.

Image description

Congrats! You are all setup to develop on XAMPP with Visual Studio.

Visual Studio Code

To follow along you are going to need Visual Studio Code and PHP Tools for Visual Studio Code.

Open VS Code, go to File menu and select Open Folder.

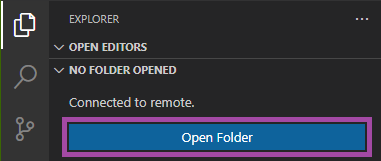

Visual Studio Code | Select Open Folder

In the dialog open c:\htdocs\ and click New Folder. Let's name it testproject and hit Select Folder

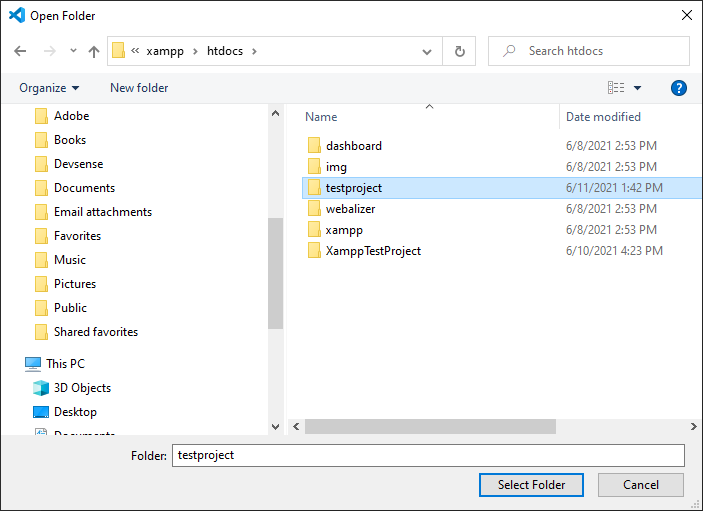

Open Folder Dialog

Once the folder is opened. Create index.php file and put some code there and save it e.g.

<?php

echo "Hello from XAMPP";

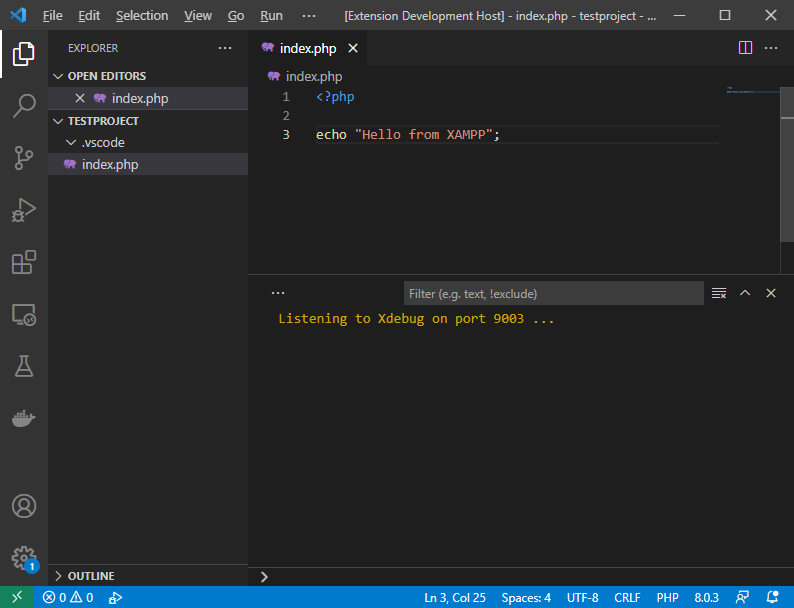

Folder opened in Visual Studio Code

To run or debug this project, select Run and Debug on the start view ( or hit Ctrl + Shift + D). Then click on create launch.json file to create launch configuration file, which will be placed to .vscode folder.

Visual Studio Code screen

By default launch.json will have 3 configurations. In the launch configuration selector choose the one named Listen for Xdebug.

Visual Studio Code launch.json

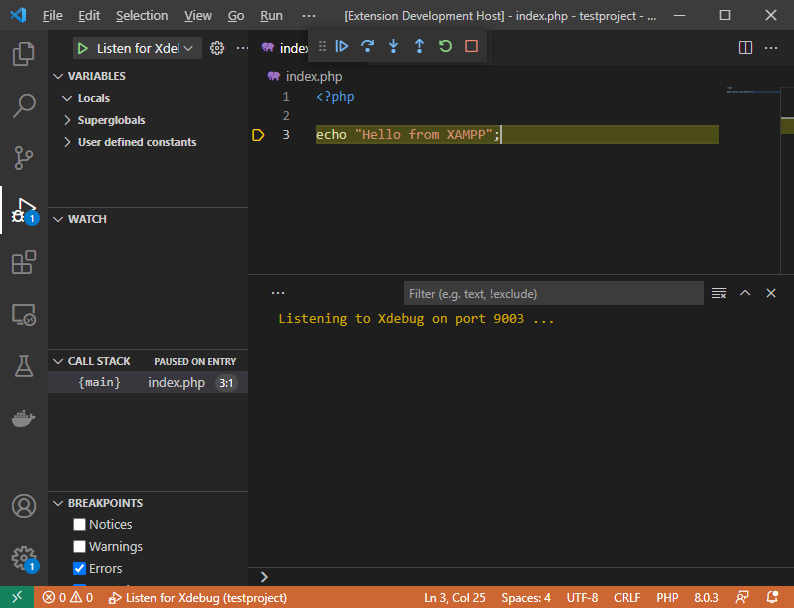

To initiate debugging session which will break on the first statement, press F10 (or F5 to break on the first breakpoint). Open your favorite browser and type http://localhost/testproject/?XDEBUG_SESSION=1

Visual Studio Code PHP debugger broken on the first statement

You're setup now and should be able to develop more useful programs than our little sample script.

Conclusion

XAMPP is a popular choice for PHP developers. In this tutorial I've presented how to install and configure it for PHP development in both Visual Studio and Visual Studio Code. Please let us know If you followed this tutorial and you find some information is missing, if you've struggled with something which wasn't mentioned here or if we could just improve anything.

Happy Coding!
