How to setup PHP remote debugging

Author by Miloslav Beno
13 minutes
How to setup PHP remote debugging

In this tutorial I'm going to demonstrate how to setup remote debugging in PHP Tools for Visual Studio. The remote system in this example is running on Ubuntu, but it can be any Linux or Windows system.

Configure remote system (Ubuntu)

This is actually the hardest part, but if you have your remote system configured properly you can skip this one.

Install Apache and PHP

  1. First you will need to install a web server and PHP. I'm going to install Apache, but feel free to install the web server of your preference.

    sudo apt-get update
    sudo apt-get install apache2
    sudo apt-get install php
    sudo apt-get install libapache2-mod-php7.0
  2. Get Xdebug

    sudo apt-get install php-xdebug
  3. Turn Xdebug on. Open php.ini. I will use nano to edit text files in this tutorial, but feel free to use editor of your choice.

    sudo nano /etc/php/7.0/apache2/php.ini

    Append these lines to the end of the file:

    [Xdebug]
    zend_extension=xdebug.so
    xdebug.remote_enable=1
    xdebug.remote_host=192.168.100.9
    xdebug.remote_port=9000

    You will need to alter remote_host option in this snippet. Change it to the IP address of the machine with Visual Studio. In my case IP address was 192.168.100.9.

  4. For the sample project from this tutorial you are going to need these PHP extensions.

    sudo apt-get install php-xml
    sudo apt-get install php-mbstring

Create a site on Apache

  1. Create directory

    sudo mkdir /var/www/example.org
  2. Create a site on Apache.

    sudo cp /etc/apache2/sites-available/000-default.conf /etc/apache2/sites-available/example.org.conf
    sudo nano /etc/apache2/sites-available/example.org.conf
  3. The newly created file will look something like this (I've removed the comments so it's shorter):

    <VirtualHost *:80>
    ServerAdmin webmaster@localhost
    DocumentRoot /var/www/html
    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined
    </VirtualHost>
  4. For this example I've chosen the site name example.org, so change the configuration file to:

    <VirtualHost *:80>
    ServerAdmin admin@example.org
    ServerName example.org
    ServerAlias www.example.org
    DocumentRoot /var/www/example.org
    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined
    </VirtualHost>
  5. Enable site

    sudo a2ensite example.org
  6. Restart Apache

    sudo /etc/init.d/apache2 restart

Install FTP server

Now you have a site, but you will also need a way to get the your php from development machine to the server. One option is to setup FTP server. I'm going to install Vsftpd; an FTP daemon available in Ubuntu. It is easy to install, set up, and maintain.

  1. Run the following command:

    sudo apt install vsftpd
  2. Start and enable the service with the commands:

    sudo systemctl start vsftpd
    sudo systemctl enable vsftpd

Create FTP user

Create a user for the FTP service. This could be considered an account for generic FTP usage. You can always create more, and anyone with a user account on the server can log via FTP.

  1. The user will be called ftpuser and is created with the command:

    sudo useradd -m ftpuser
  2. Set the user's password with the command:

    sudo passwd ftpuser
  3. Setup previously created directory as home directory for ftpuser

    sudo usermod -d /var/var/www/example.org ftpuser
  4. Add permissions

    sudo chown ftpuser /var/www/example.org
    sudo chmod -R 755 /var/www/example.org

Configure VSFTP

  1. Create a brand new configuration file. Before you do that, let's save the original with the command:

    sudo mv /etc/vsftpd.conf /etc/vsftpd.conf.orig
  2. Create the new file with the command:

    sudo nano /etc/vsftpd.conf
  3. Place the following to the vsftpd.conf:

    listen=NO
    listen_ipv6=YES
    anonymous_enable=NO
    local_enable=YES
    write_enable=YES
    local_umask=022
    dirmessage_enable=YES
    use_localtime=YES
    xferlog_enable=YES
    connect_from_port_20=YES
    chroot_local_user=YES
    secure_chroot_dir=/var/run/vsftpd/empty
    pam_service_name=vsftpd
    rsa_cert_file=/etc/ssl/certs/ssl-cert-snakeoil.pem
    rsa_private_key_file=/etc/ssl/private/ssl-cert-snakeoil.key
    ssl_enable=NO
    pasv_enable=Yes
    pasv_min_port=10000
    pasv_max_port=10100
    allow_writeable_chroot=YES
  4. Restart the FTP server

    sudo service vsftpd restart

Configure development system

Now, when the remote system is fully configured you can setup a development environment, which should be considerably less work.

To be able to access example.org from your developement machine you have to modify the hosts file located at C:\Windows\System32\drivers\etc\hosts. Append the following line to the end of a file (modify IP adress to match your remote system).

 192.168.100.17 example.org

Create a PHP project

  1. If you happen to have PHP Tools for Visual Studio version 1.27 or higher you can use the New project dialog.

    Just click File | New | Project, type php to the search bar and select PHP Web Project.

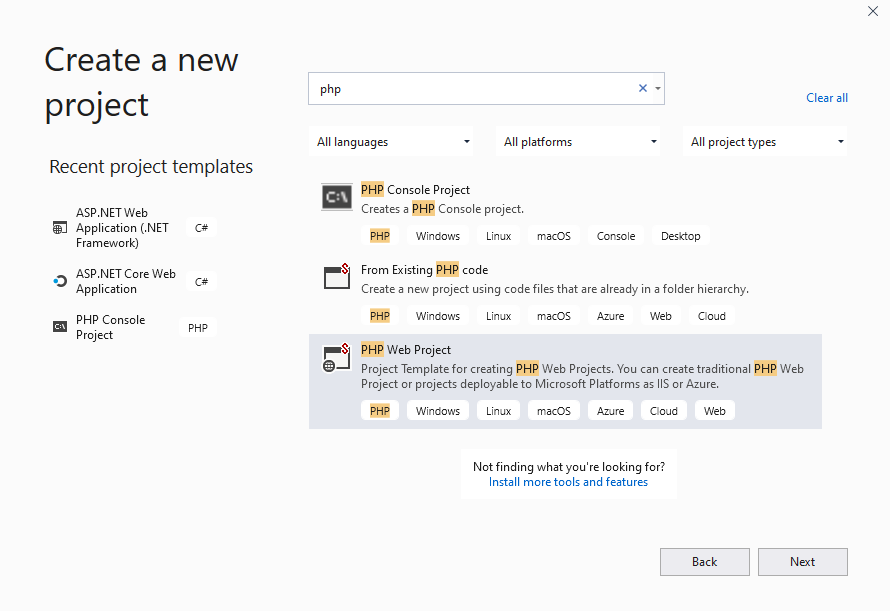

    New Project - First Dialog

  2. Fill the location and the name.

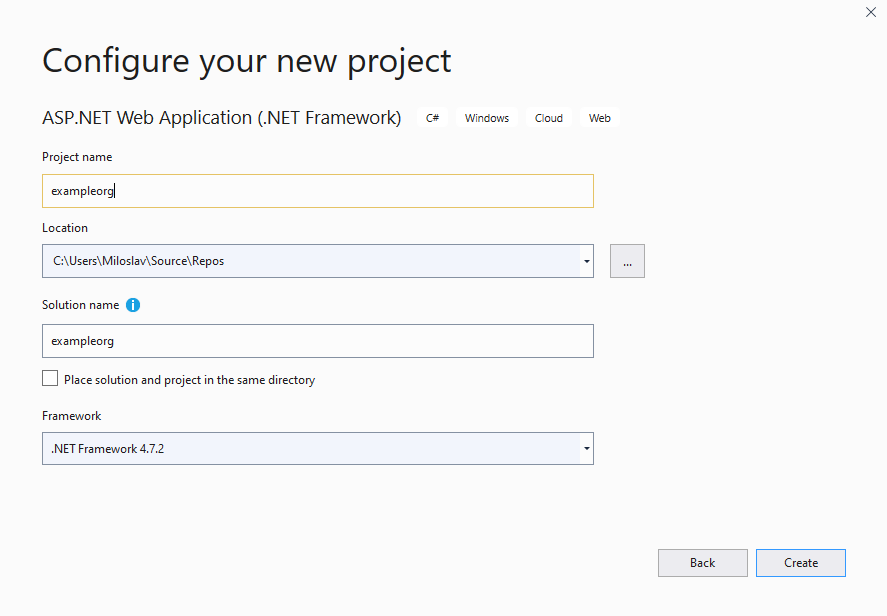

    New Project - Second Dialog

  3. Select Simple CMS Project, just to try out something a little more complex than the "Hello World" script.

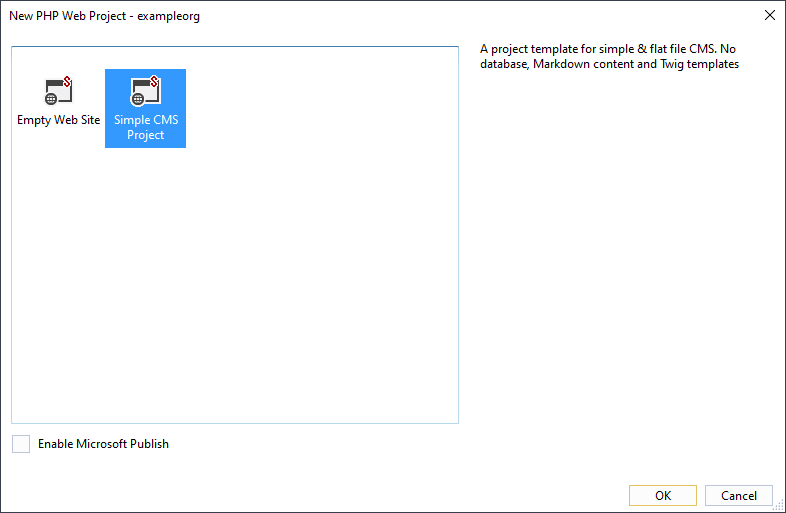

    Create PHP Web Project

  4. If you don't have any PHP installation on Windows, PHP Tools will ask you if you'd like to install it, you can just click Yes.

    Then, you will get asked if you want to download composer packages. Click Yes.

Configuring project

  1. In Visual Studio your PHP Web Project has to be instructed about the web server setting in Ubuntu. Just right click on project node in the Solution Explorer, click Properties.

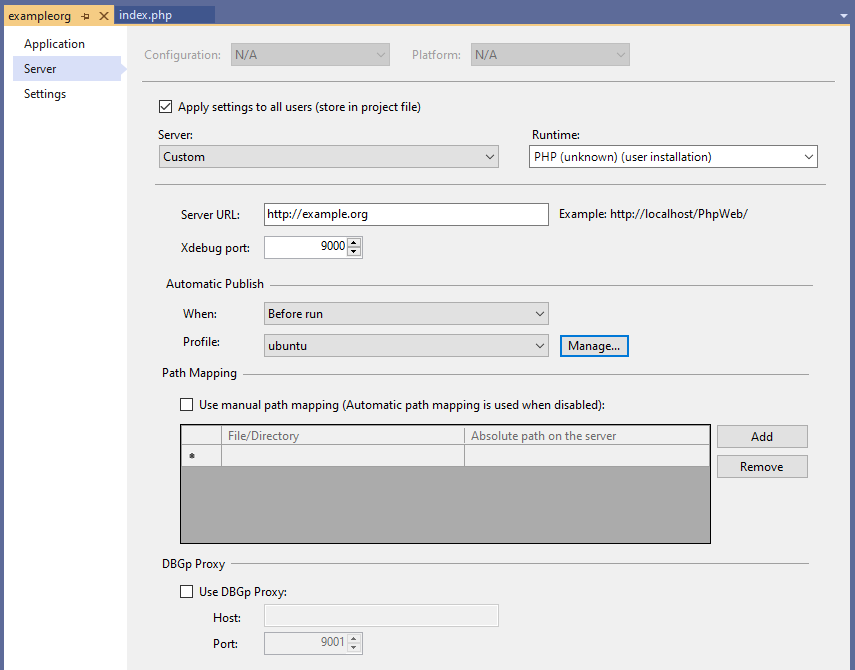

    Project Properties

  2. For debugging to work properly on remote machine PHP Tools for Visual Studio need to know how to map paths from and to remote system. In this case path mapping is simple, so we can keep automatic path mapping and let PHP Tools to figure it out. But keep in mind when you will work with more complex projects path mapping will have to be explicitly defined, otherwise debugging will not work properly.

Deployment

Since FTP server is already configured on remote system, you just need to configure publishing in Visual Studio.

  1. While you are in project properties, Server tab, click on Manage in Automatic Publish section. And name a new profile.

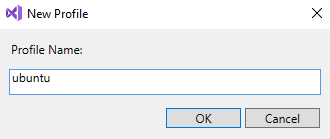

    Profile Name

  2. Then fill in FTP server address and user credentials. Use ftpuser created earlier in the tutorial

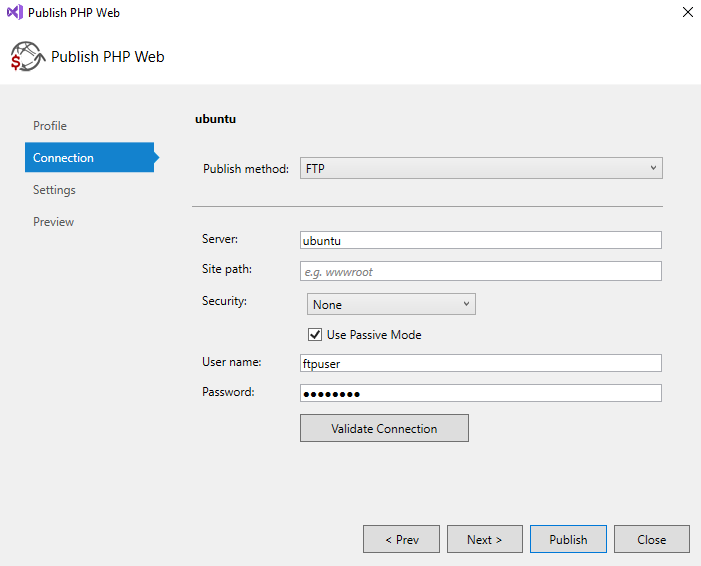

    Publish Profile

  3. Click Validate Connection to check if you are able to connect to the remote server.

  4. Close the dialog and now you can select publish trigger when publish will occur. I've selected Before run, but feel free to select other option.

Debug

Now you should be able to debug remote PHP application in your Visual Studio. Just put a breakpoint to the location of your interest and press F5.

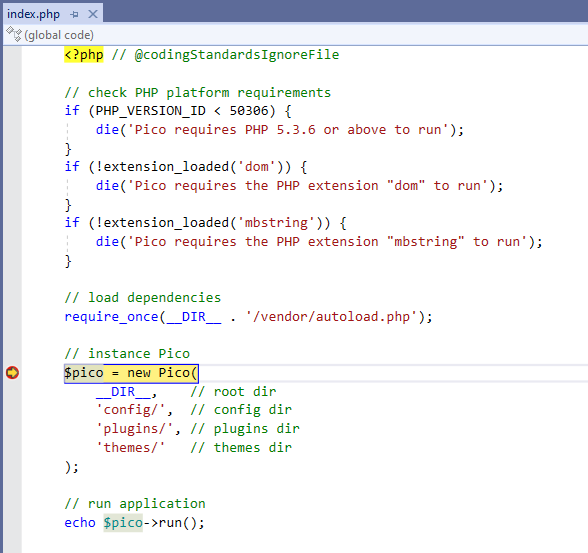

Breakpoint

When you check Locals pane you can see that you are really debugging Ubuntu system.

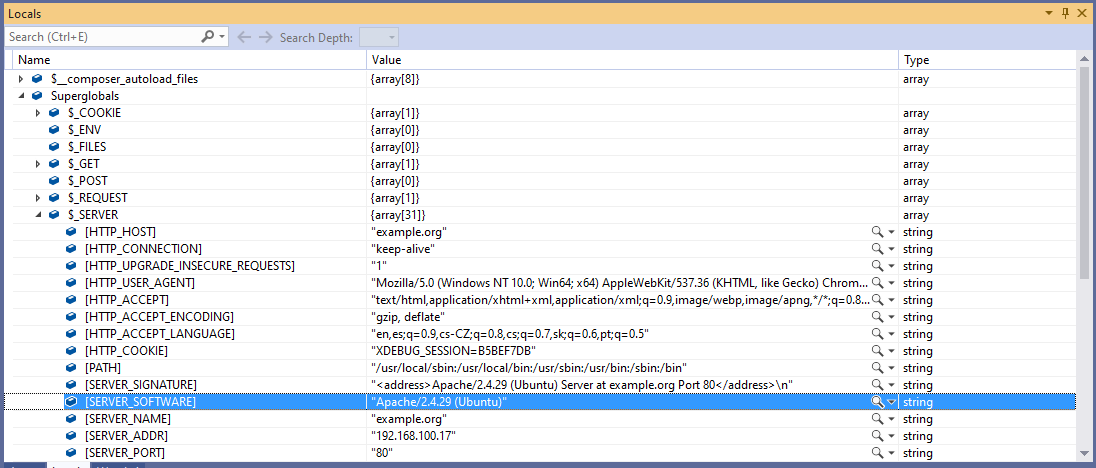

Locals

That's it

Please let me know in the comments below if this was easy to follow or if you'd have any question.
